Hangzhou Zon Packaging Machinery Co. , Srl
| Luogo di origine: | La Cina, Zhejiang |
|---|---|
| Marca: | ZONPACK |
| Certificazione: | CE SGS |
| Numero di modello: | ZH-GD8-200 |
| Quantità di ordine minimo: | 1sets |
| Prezzo: | USD+23500-40000+Sets |
| Imballaggi particolari: | caso di legno |
| Tempi di consegna: | giorni 45Working |
| Termini di pagamento: | L/C, D/A, D/P, T/T, Western Union |
| Capacità di alimentazione: | mese 99+Sets+per |
| Tipo della borsa: | la borsa pre-fatta, borsa della chiusura lampo, sta sulla borsa del sacchetto | Touch screen: | 7inch, Weinview |
|---|---|---|---|
| Velocità: | 25-60bags/min | Accuratezza: | ±0.5gram |
| Posizione di lavoro: | Otto posizioni/sei posizioni | Dimensione del sacchetto: | W: 200-300mm L: 200-450mm |
| Materiale: | 304SS, 316SS | Caratteristica: | Adozione SpA e del touch screen |
| Evidenziare: | Macchina imballatrice della borsa di Premade di 0,5 grammi,macchina imballatrice della borsa di 450mm Premade |
||
Frequency converter control doypack rotary packing machine for beef jerky biltong package machine
1 . Main function
1 . Automatically check bag open status, it will not fill and seal when bag is not opened fully. It avoids the wasting of bag and raw material and save cost.
2 . Machine working speed can be adjusted continuously with frequency converter
3 . PLC from SIEMENS is adopted, the control system is easy to operated with friendly HMI interface.
4 . Machine will alarm when the air pressure is abnormal and stop working with overload protect and safety device.
5 . Machine can work with dual-fill, filling with two types of material, such as solid and liquid, liquid and liquid.
6 . Machine can work with bag that width range from 100-200mm, by adjusting the width of clips.
7 . Adopting advanced bearing, where no need to add oil and less pollution for product.
8 . Rotary packing machine can work with different filler to pack solid, powder and liquid.
2 . Technical Specification
| Model | ZH-G8-200 |
| Packing Speed | 25-50 bag/min |
| Bag Size (mm) | W: 100-200mm L: 100-350mm |

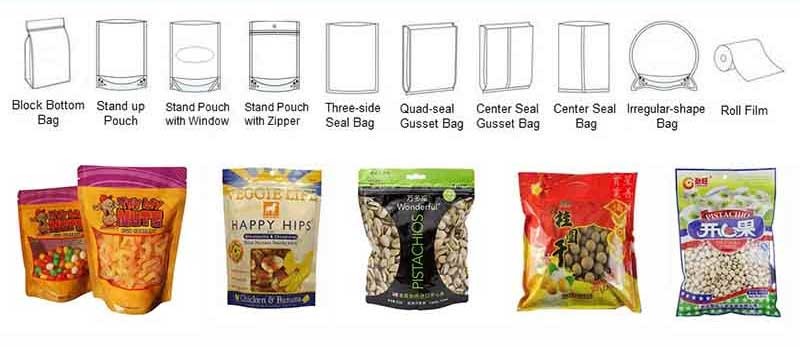

| Bag Type |
Flat pouch, Stand up pouch, Stand up pouch with zipper |
| Air Consumption | 0.4 m3/min 0.8Ma/ |
| Packing Material | POPP/CPP, POPP/VMCPP,BOPP/PE,PET/AL/PE, NY/PE, PET/PET |
| Power Parameter | AC380V/50Hz/3KW |
| Machine Dimension(mm) | 1770(L) ×1700(W)×1800(H) |
| Gross Weight (Kg) | 1200 |
3 . Application
ZH-G8 Rotary packing machine is suitable for automatic packing for grain and solid food, such as beans, nuts, dry fruits, candy, cereal, chocolate, biscuit, peanut, capsule, seeds, chemicals, sugar, etc.

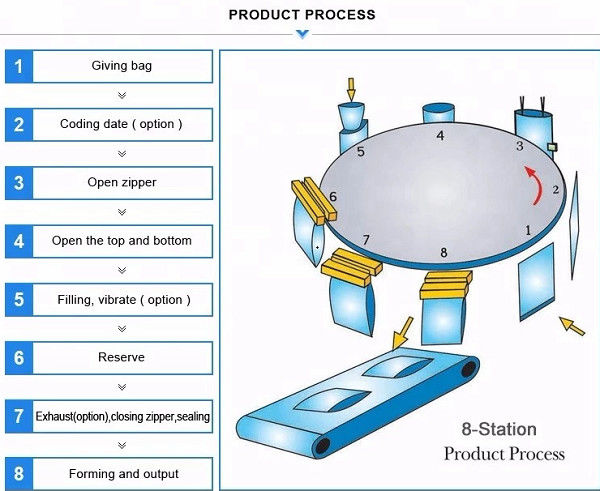

4 . Working process of Pre-made bag Packing Machine
5 . Our Factory
